Cracking the Circuit Code: Understanding Electronics Basics

Introduction

Have you ever wondered how your smartphone works, how a light bulb turns on, or how your favorite gadgets come to life? The answer lies in the fascinating world of electronics. In this blog post, we’ll dive into the basics of circuits, components, and the magic that powers our modern lives.

Section 1: The Basics of Circuits

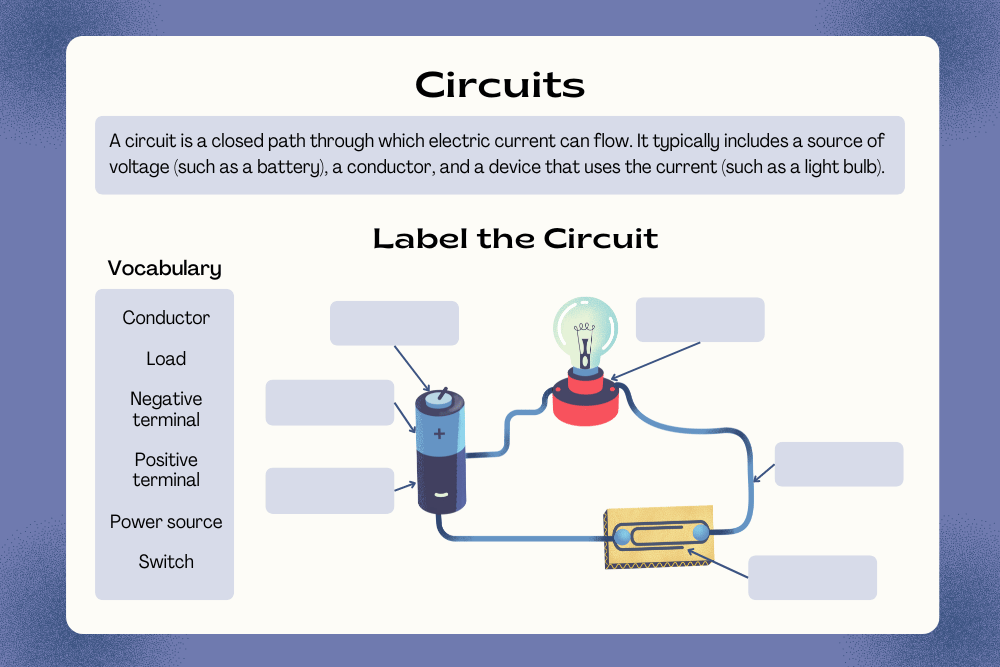

What Is a Circuit?

A circuit is like a highway for electrons. It’s a closed loop through which electric current flows. Imagine a race track where tiny electrons zoom around, carrying energy from one point to another. Whether it’s a simple flashlight or a complex computer, all electronic devices rely on circuits.

Current, Voltage, and Resistance

• Current (I): Think of current as the flow rate of electrons. It’s measured in amperes (amps). When you turn on a switch, you allow electrons to move through the circuit.
• Voltage (V): Voltage is the driving force that pushes electrons. It’s like the pressure in a water pipe. Measured in volts, it determines how fast electrons move.
• Resistance ®: Every component in a circuit resists the flow of electrons. Resistance is measured in ohms (Ω). Resistors, for example, limit the current.

Section 2: Components and Tools

Common Components

1. Resistors: These little color-coded cylinders control the flow of current. They’re like traffic lights for electrons.
2. Capacitors: Imagine them as tiny batteries that store energy temporarily.
3. Diodes: One-way streets for electrons. They allow current to flow in only one direction.
4. Transistors: The brain cells of circuits. They amplify or switch signals.
5. LEDs (Light-Emitting Diodes): These emit light when current passes through them.

Essential Tools

• Multimeter: Your electronic detective. It measures voltage, current, and resistance.
• Soldering Iron: For joining components together.
• Breadboard: A prototyping platform where you can build and test circuits without soldering.

Section 3: Reading Circuit Diagrams

The Universal Language

Circuit diagrams use symbols to represent components. Here are a few:

• 🌐: Battery
• ⚫: Resistor
• ➡️: Wire
• 🔺: LED
• ⬛: Ground

Learn to decipher these symbols, and you’ll unlock the secrets of countless circuits.

Section 4: Building Your First Circuit

Let’s Light Up!

1. Materials Needed:
   • Battery
   • Resistor
   • LED
   • Wires
2. Steps:
   • Connect the battery to the resistor.
   • Attach the LED to the other end of the resistor.
   • Voilà! You’ve created a simple LED circuit.

Section 5: Troubleshooting Common Issues

When Things Go Wrong

1. Check Connections:
   • Loose wires or faulty connections can disrupt the flow of electrons. Imagine a highway with potholes—cars (electrons) won’t move smoothly. Inspect your circuit carefully. Are all wires securely connected? Is there any corrosion or damage?
   • Tip: Wiggle the wires gently to see if any loose connections cause flickering or interruptions.
2. Test Components:
   • Sometimes a resistor might be faulty, or an LED might refuse to light up. Use your trusty multimeter to verify if components are working as expected.
   • How to Test a Resistor:
     • Set your multimeter to the resistance (Ω) mode.
     • Touch the probes to both ends of the resistor.
     • A good resistor will show the specified resistance value (marked by color bands).
     • If it reads open (infinite resistance) or zero resistance, it’s likely faulty.
   • How to Test an LED:
     • Set your multimeter to the diode mode (usually represented by a diode symbol).
     • Connect the positive (red) probe to the longer leg (anode) and the negative (black) probe to the shorter leg (cathode) of the LED.
     • A working LED will show a voltage drop (around 1.8 to 2.2 volts).
     • If it doesn’t light up or shows no voltage drop, it might be defective.
3. Safety First:
   • Always disconnect power before tinkering with circuits. Imagine handling live wires without turning off the switch—it’s like trying to fix a moving car engine. Safety goggles and caution are your best friends.

Section 6: Advancing Your Skills

Beyond Basics

1. Experiment:
   • Try different components. Swap resistors, capacitors, or transistors. Observe how changing values affect the circuit behavior.
   • Build mini projects: a temperature sensor, a light-sensitive alarm, or a simple radio receiver.
   • Remember: Every experiment teaches you something new.
2. Online Courses:
   • Ready to dive deeper? Explore these courses:
     • Edexcel IGCSE Olevel Physics Exam Preparation Crash Course: Master the physics concepts needed for your exams.
     • Cambridge Grade 7 Physics (Live): Join live interactive sessions and learn from experts.
     • Cambridge Grade 7 Physics: Dive into the Cambridge curriculum.
     • New Coordinated Science Physics Essentials: Grade 7: Essential knowledge for budding physicists.
     • Edexcel OLevel Physics Revision Note (Updated): Revise and reinforce your understanding.

Conclusion

Understanding electronics is like solving puzzles. Each component, each connection, contributes to the bigger picture. So, keep tinkering, keep exploring, and soon you’ll be the circuit whisperer—cracking codes and creating wonders!
